Products Description

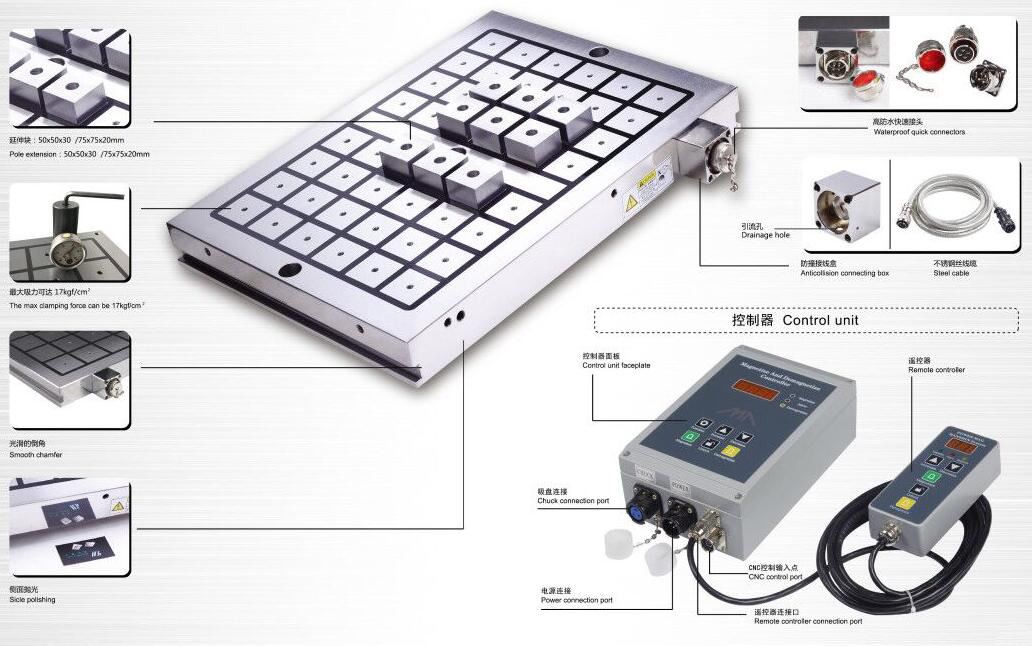

The Electro Permanent Magnetic Chuck EP50 is engineered to meet the demanding requirements of modern CNC machining centres, injection moulding machines and grinding stations handling ferromagnetic materials. With a monoblock steel case and electro-permanent magnet technology, it provides a secure, repeatable clamping solution without continuous power draw. For industrial buyers seeking a robust magnetic chuck workholding solution, the EP50 delivers consistent performance and allows five-sided access of the workpiece, making it a versatile choice for heavy-duty manufacturing.
Technical Specification
|
Model |
50 Series |
75 Series |
|
Pole size |
50x50mm |
75X75mm |
|
Magnetic force of each pole |
380kgs |
750kgs |
|
Thickness of each plate |
53mm※ |
53mm※ |
|
Max. working temperature |
70°C※ |
70°C※ |
|
Depth of magnetic flux |
12mm |
18mm |
|
Standard voltages |
220V 380V 50/60Hz |
220V 380V 50/60Hz |
|
Electrical input |
≤60A |
≤60A |
Features & Applications
- High Precision Workholding: The Electro Permanent Magnetic Chuck EP50 uses a monoblock steel case and precision poles to ensure consistent suction force across the magnetic face, reducing part deformation and improving machining accuracy.
- Flexible Machining Access: Once clamped, parts are accessible on up to five sides, enabling complex operations without repositioning-a key benefit in high-mix manufacturing.
- Energy-Efficient & Safe: Power is only needed to switch ON/OFF; during machining no current is required, reducing heat generation and ensuring part stability even during unexpected power loss.
- Wide Industrial Use: Suited for drilling, milling, grinding, CNC machining centres, tooling fixtures and mould work where ferrous work-pieces are processed.
- Workpiece Adaptability: Even workpieces larger than the magnetic face can be securely held; ability to mount multiple chucks under single controller adds flexibility for production lines.
Product Details
For OEM purchasers and manufacturing plants, the Electro Permanent Magnetic Chuck EP50 supports a wide range of customisation: pole sizes, plate thicknesses, voltages, controller types and installation interfaces. We work with engineering teams to integrate the chuck precisely into palletising systems, robotic work-cells or multi-station machining centres. Reliably delivering in batch quantities, we accommodate both standard and tailored orders for industrial manufacturers.

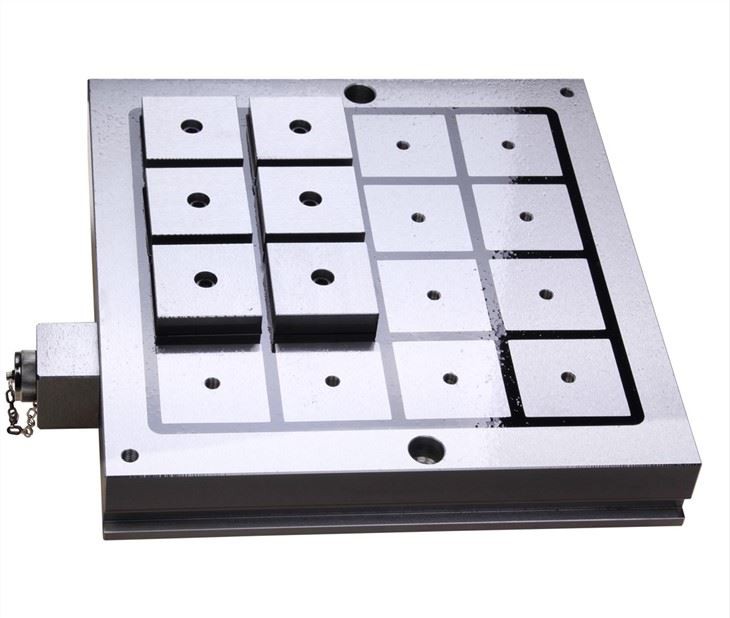

EP50 Magnetic Chuck

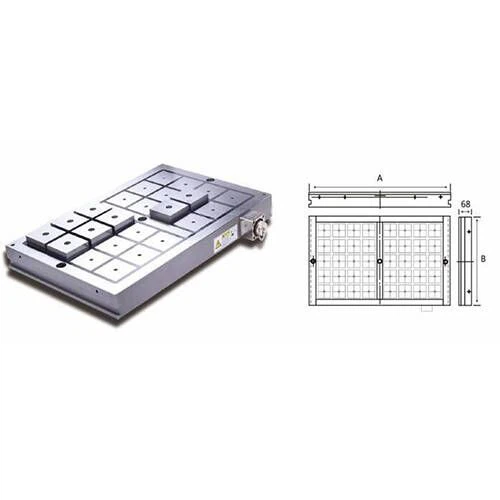

EP75 Magnetic Chuck

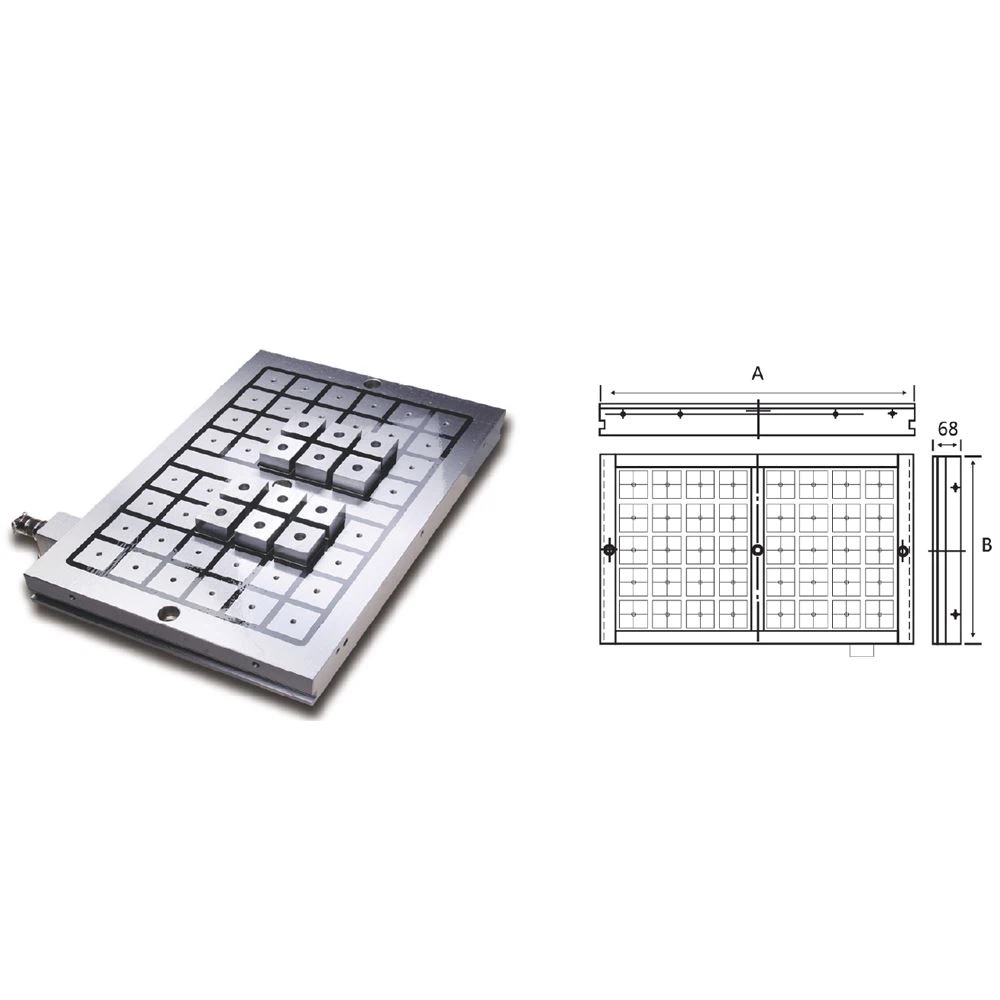

EP50(50X50 Magnetic poles) Series Customary Units:
How to Work
Quality Assurance & Proven Supply
Our facility holds ISO9001, ISO14001 and ISO/TS16949 certifications-ensuring all industrial magnetic chuck equipment meets stringent quality standards. Over 5,000 customers globally trust our solutions.Each EP50 unit is inspected for pull force, electrical safety, heat-rise and durability against hydraulic coolants to support procurement risk-mitigation.
Dedicated Service & Support
From your first enquiry to installation and after-sales, we provide full support. We offer quote turnaround in 24-48 hours, drawings review, sample units for trials, and customised logistics planning. For volume orders our team ensures consistent specification, batch traceability and responsive technical service.
