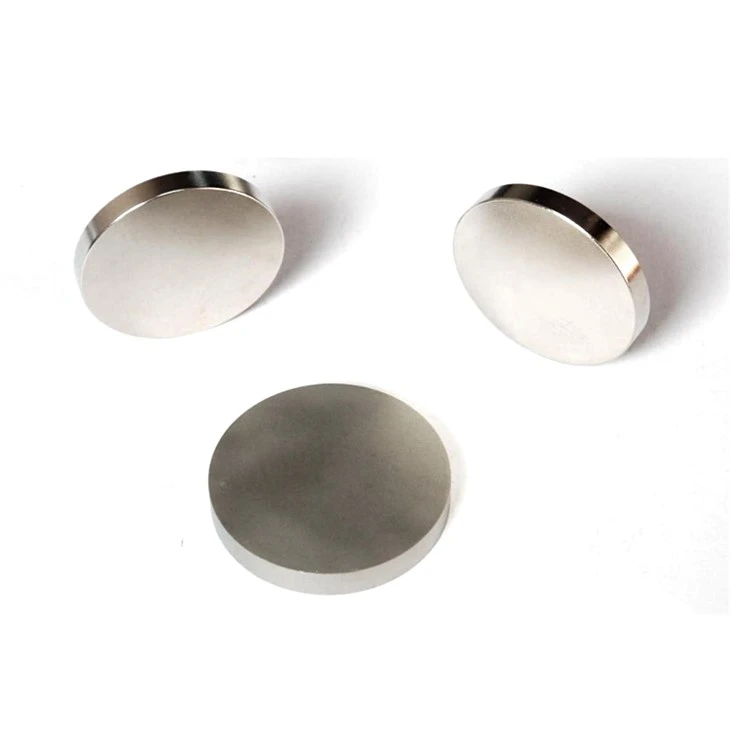

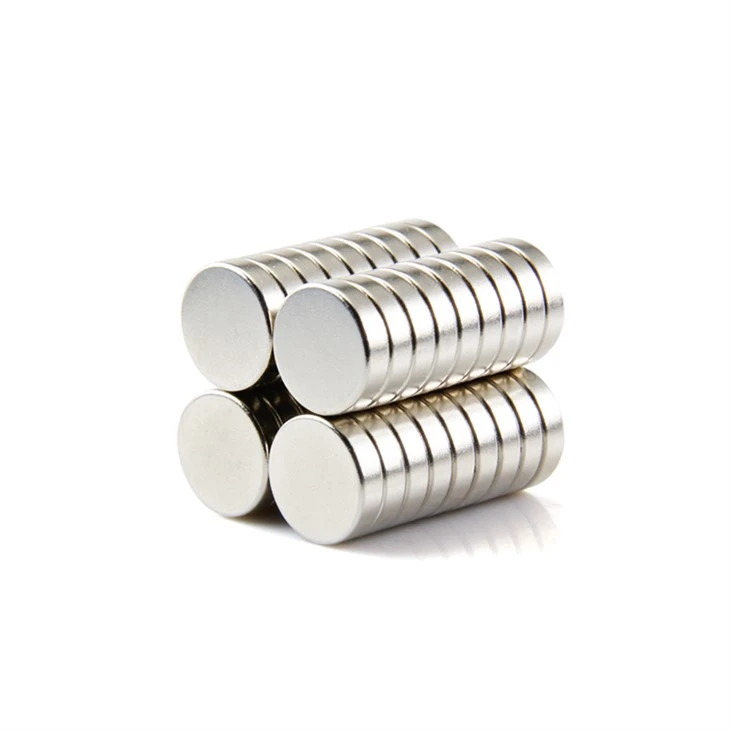

15mm Neodymium Magnets

The 15mm neodymium magnet disk is a compact, high‑energy rare‑earth magnet used in industrial and mechanical applications where space is limited but magnetic performance still matters. Its modest diameter and uniform magnetic output make it suitable for assemblies in motors, sensors, positioning fixtures and tooling jigs. This version is intended as a component within a larger design rather than a consumer product.



These magnets are produced from sintered neodymium iron boron (NdFeB). This material provides one of the highest magnetic energy products available commercially, allowing small magnets to generate considerable flux. Most 15mm discs are magnetized axially through thickness, which offers predictable field direction for typical mounting configurations.

Standard protective plating (Ni–Cu–Ni) is applied to resist oxidation and surface wear. For environments with moisture or surface contact concerns, alternative coatings such as epoxy or zinc may be specified.





Contact now



• Shape: Disc
• Diameter: 15 mm
• Thickness: Customizable to match design constraints
• Material: Sintered NdFeB
• Grade Options: Typically N35–N52 depending on strength and temperature requirement
• Magnetization: Axial through thickness; other orientations available on request
• Temperature Capability: Standard grades stable to ~80 °C; higher temp variants available

Thickness, magnetization pattern and coating are selected based on the specific application and operating conditions you provide.







The 15mm size is chosen when designers need a magnet that is:

• Compact: Fits into small cavities or tight assemblies.
• Stable: Predictable magnetic output over repeated cycles.
• Easy to integrate: Tested mounting practices include adhesives, mechanical retainers, or press‑fit housings.

This magnet size often appears in:

• Micro motor rotor/stator designs
• Sensor and actuator assemblies
• Magnetic fixtures and retention tools
• Small magnetic couplings
• Precision tooling components

These magnets are most effective when their size and magnetic output are matched carefully to the mechanical design and operational forces.

We support bulk supply and OEM procurement workflows. For production orders, magnets can be manufactured to match your drawing: specify diameter, thickness, magnetization direction and coating. Samples can be supplied for fit and performance evaluation before volume orders.

Typical ordering process:

1. Submit part drawing or specification sheet.
2. Receive sample magnets for verification.
3. Confirm requirements and schedule production.
4. Receive batch shipment with optional inspection reports.

Packaging protects magnets with separators to avoid unwanted attraction during transit. For volume orders, we can prepare palletized packaging and labeling for assembly line integration.
