Product Summary

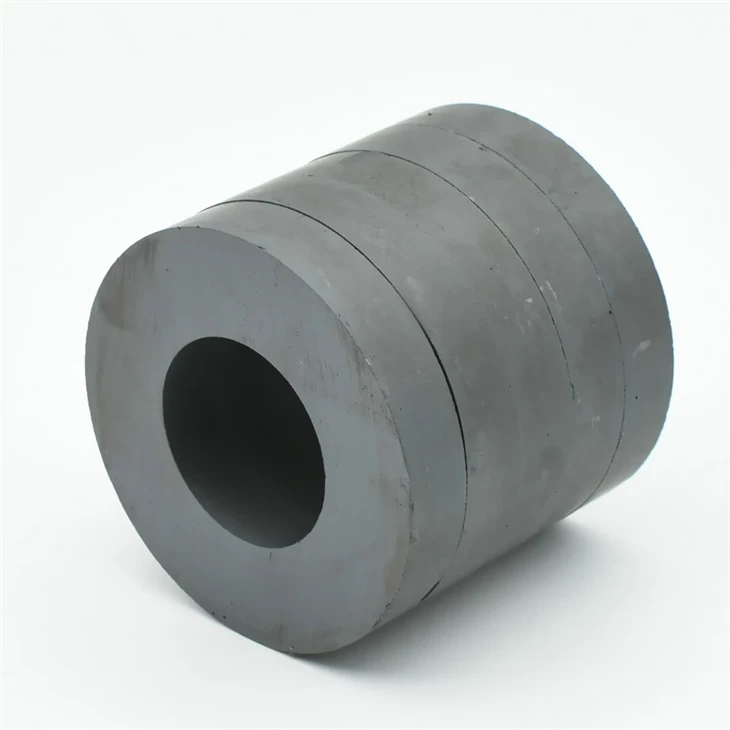

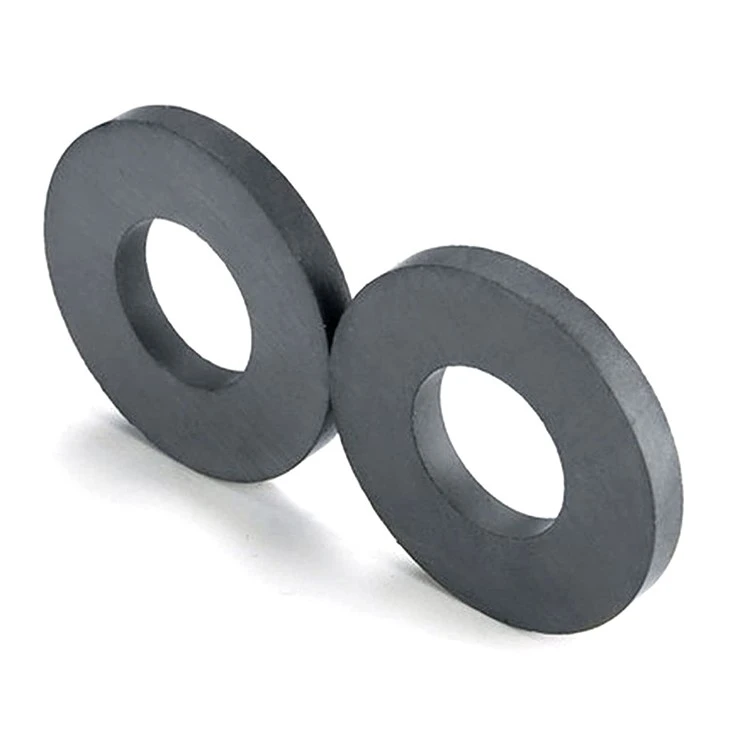

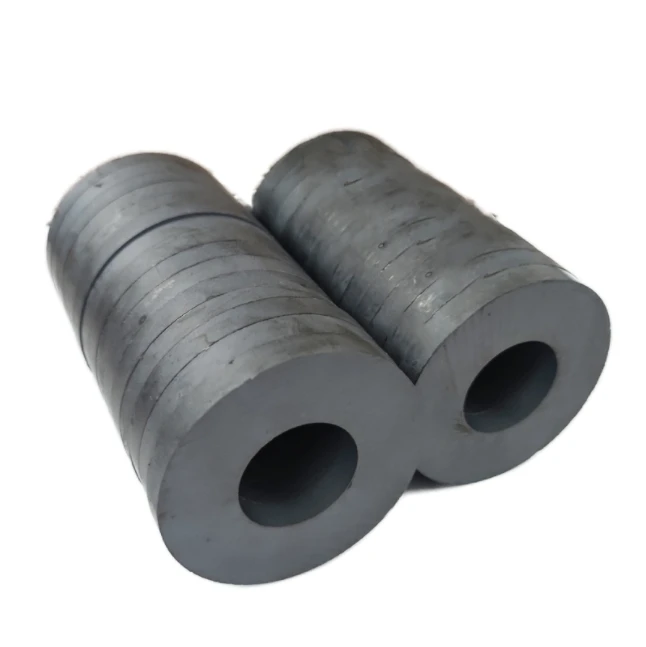

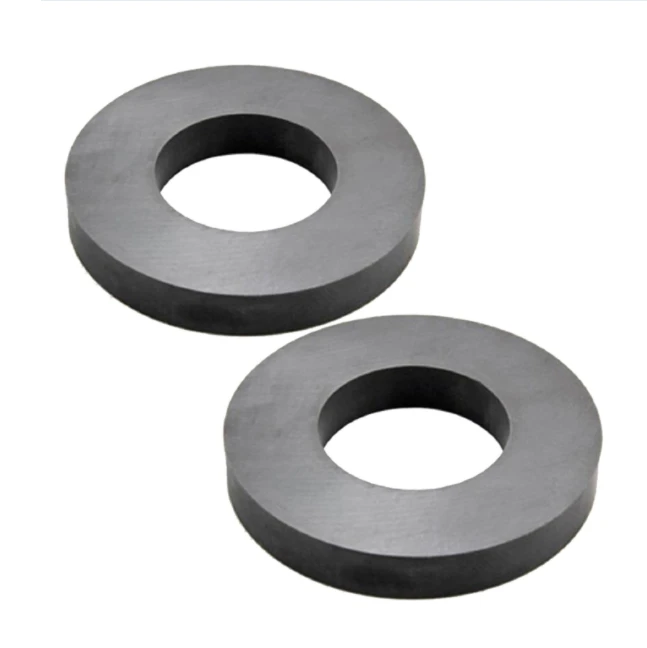

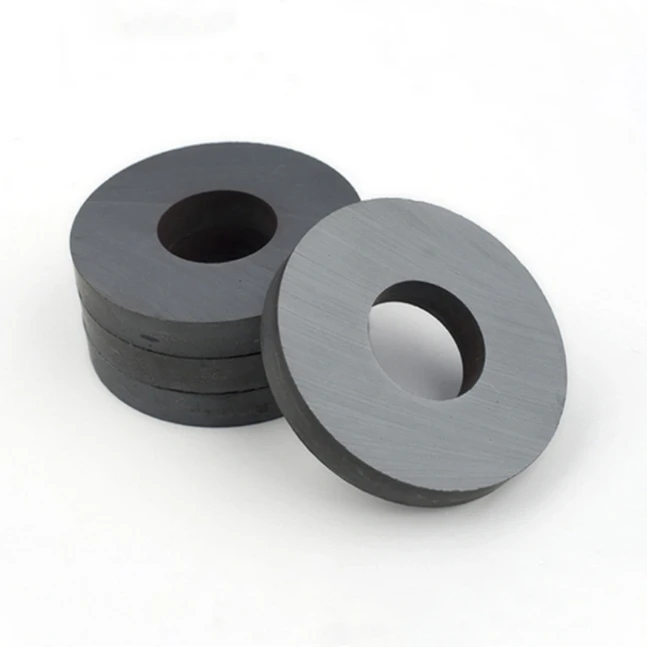

Y35 Ferrite Ring Magnet for Loudspeakers provides stable magnetic field for speaker assemblies at competitive cost.
Y35 grade sintered ferrite Ring shape for loudspeaker voice coils High temperature resistance up to 250 °C Custom inner/outer diameter available
Product Details
Y35 Ferrite Ring Magnet for Loudspeakers is manufactured in our factory from high-quality sintered hard ferrite in the Y35 grade. We form the rings by pressing and sintering, then machine the inner and outer diameters to precise tolerances before magnetization.
These Y35 Ferrite Ring Magnet for Loudspeakers deliver consistent flux density, excellent corrosion resistance and reliable performance up to 250 °C, making them suitable for loudspeaker drivers, sound systems and related audio equipment. The ring geometry is designed to fit around the voice coil and provide a uniform magnetic field for efficient sound reproduction.
We support bulk supply and OEM order for speaker manufacturers. Inner diameter, outer diameter, thickness and magnetization direction can be customized according to your drawings. Every batch of Y35 Ferrite Ring Magnet for Loudspeakers is inspected for dimensional accuracy and magnetic properties before packing, ensuring stable quality for high-volume production.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Y35 Ferrite Ring Magnet for Loudspeakers |
| Material | Sintered Hard Ferrite |
| Grade | Y35 |
| Shape | Ring |
| Magnetization | Axial (standard) / Custom |
| Outer Diameter | Custom |
| Inner Diameter | Custom |
| Thickness | Custom |
| Tolerance | ±0.1 mm (typical) |
| Max Operating Temp | 250 °C |
| Coating | None (natural corrosion resistance) |
| Application | Loudspeakers, speakers, audio drivers |
| Certifications | ISO 9001, RoHS |
FAQ
Q: What is the usual minimum order quantity?
A: We accept trial orders from a few hundred pieces. Larger quantities receive better pricing and priority production.
Q: Can the magnetization direction be changed?
A: Yes. Axial magnetization is standard for most loudspeaker applications. Radial or multi-pole magnetization can be arranged on request.
Q: How are the magnets packed for export?
A: Rings are stacked with protective separators, then packed in sturdy cartons to prevent chipping during shipping.
