The Shift Towards Direct-Drive Permanent Magnet Generators (DD-PMG)

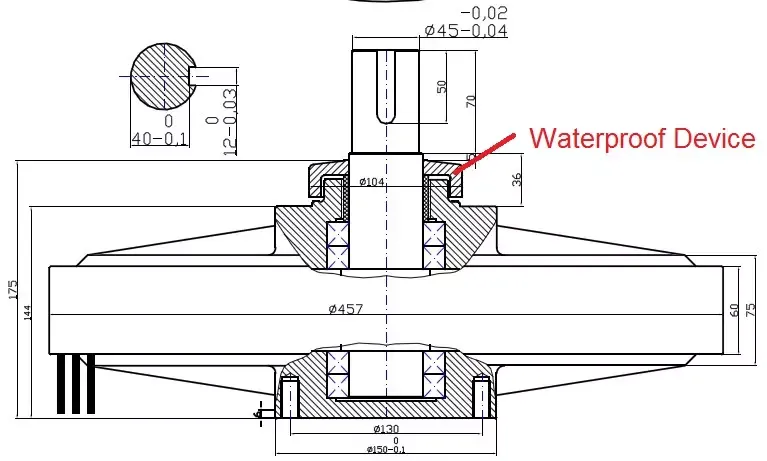

Conventional wind turbines use a gearbox to increase rotor speed (12-20 rpm) to generator speed (1500-1800 rpm). Gearbox failures account for 20-30% of turbine downtime. DD-PMG eliminates the gearbox by using a multi-pole generator (typically 48-144 poles) with a large diameter (3-5 meters) that operates at low speed. The permanent magnets on the rotor produce the excitation field without slip rings or excitation power.
For a 3 MW turbine, the rotor requires approximately 6,000-8,000 individual NdFeB magnets, each roughly 50x30x15mm. Total magnet weight: 1.2-1.6 tonnes. As turbine sizes grow (now 10-15 MW offshore), magnet volume per turbine reaches 5-8 tonnes.
Material Specifications for Wind Power: High Br and High Hcj Requirements
Wind turbine generators operate at 60-120°C internal temperature. The magnets face a demagnetizing field from stator armature reaction during grid faults (short circuits). The generator must survive a 3-phase short circuit without irreversible demagnetization >2%.
Therefore, wind-grade NdFeB requires:
Br ≥ 13.5 kGs (N45 or higher) to minimize generator volume and weight.
Hcj ≥ 20 kOe at 20°C, derating to ≥ 12 kOe at 100°C (corresponding to N45SH or N42UH).
Squareness (Hk/Hcj) ≥ 0.95, meaning the demagnetization curve remains straight near the knee.
Typical grades used: N45SH, N42SH, N40UH. Sintering with grain boundary diffusion (GBD) of terbium achieves Hcj 25-30 kOe while keeping Br above 13.5 kGs. Standard N45SH (without GBD) has Hcj 17-20 kOe, sufficient for onshore turbines in moderate climates. Offshore or high-ambient-temperature sites require N42UH or N40UH with Hcj 25-30 kOe.
Corrosion Protection for Offshore Wind Farm Magnets
Offshore wind turbines face salt-laden air (chloride concentration up to 5 mg/m³) and high humidity. Standard Ni-Cu-Ni coating (12-25μm) provides 72-200 hours of salt spray resistance (ASTM B117), insufficient for 20-year offshore life. Required protection levels:
| Environment | Salt Spray Requirement (ASTM B117 hours to red rust) | Recommended Coating System |
|---|---|---|
| Onshore, inland | 200 hours | Ni-Cu-Ni (20-25μm) + epoxy topcoat (10-15μm) |
| Onshore, coastal | 500 hours | Epoxy (30-40μm) + polyurethane overcoat |
| Offshore, nacelle (sealed) | 1000 hours | Epoxy (40-60μm) or Parylene C (15-25μm) |
| Offshore, direct seawater splash | 2000 hours (no red rust) | Fully encapsulated in resin or stainless steel jacketed |
For offshore applications, we supply magnets with a three-layer system: Ni-Cu-Ni (10μm) as base for adhesion, epoxy (30μm) for corrosion barrier, and polyurethane (20μm) for UV and abrasion resistance. Total thickness 60μm, validated by 2000-hour salt spray with no red rust.
Managing Lead Times for Bulk Large-Block NdFeB Orders
Wind turbine magnet orders are typically 1-10 tonnes per shipment. Lead times depend on:
Raw material availability: NdFeB powder with heavy rare earth (Dy/Tb) for high Hcj grades requires 4-6 weeks for sourcing.
Pressing and sintering: Large blocks (e.g., 80x60x30mm) require slower compaction and longer sintering cycles (48-72 hours vs. 24 hours for small parts). Sintering furnace capacity for large blocks is limited.
Machining: Blocks are sliced, ground, and chamfered. For 8,000 magnets per turbine, machining takes 3-5 weeks.
Coating: Epoxy coating with 60μm thickness requires multiple spray and cure cycles: 1-2 weeks.
Magnetization and inspection: Multi-pole radial magnetization on large rings takes 1-2 weeks.
Total typical lead time for first production order (after tooling approval): 12-16 weeks. Repeat orders: 8-10 weeks. We recommend wind turbine manufacturers place blanket orders with 6-month rolling forecasts.
For bulk NdFeB magnets for wind turbine generators – including N45SH, N42UH grades, with offshore-grade epoxy coating – please visit our Sintered Neodymium Magnet product page on our website. We supply magnets with 20-year demagnetization warranty (≤5% irreversible loss) and full material traceability from rare earth source to final assembly.
To request a quotation for turbine quantities (1-20 tonnes), provide your generator design specs: air gap, pole count, operating temperature, and required short-circuit withstand time. Our engineering team provides FEA demagnetization simulation as part of the quote.
Frequently Asked Questions
Q: What is the guaranteed irreversible flux loss after 20 years of wind turbine operation?
A: For N45SH with operating temperature ≤80°C and no abnormal grid faults, ≤5% irreversible loss. We provide aging model predictions based on IEC 60404-8-1. Accelerated thermal testing (3000 hours at 100°C) confirms <3% loss.
Q: Do you supply magnets pre-assembled into stainless steel carriers for easy mounting?
A: Yes. We offer complete magnet carriers (pucks) made of 316L stainless steel, with magnets encapsulated in epoxy inside the carrier. This eliminates on-site magnet handling and protects against corrosion. Carrier assembly adds 15-20% to magnet cost but reduces installation labor by 80%.
Q: What quality certifications do you hold for wind energy magnets?
A: ISO 9001:2015, IATF 16949 (automotive-grade quality systems applied to wind), and compliance with DNV GL standard for permanent magnets in wind turbines (DNVGL-ST-0360). Our testing lab is ISO 17025 accredited.
