Products Details

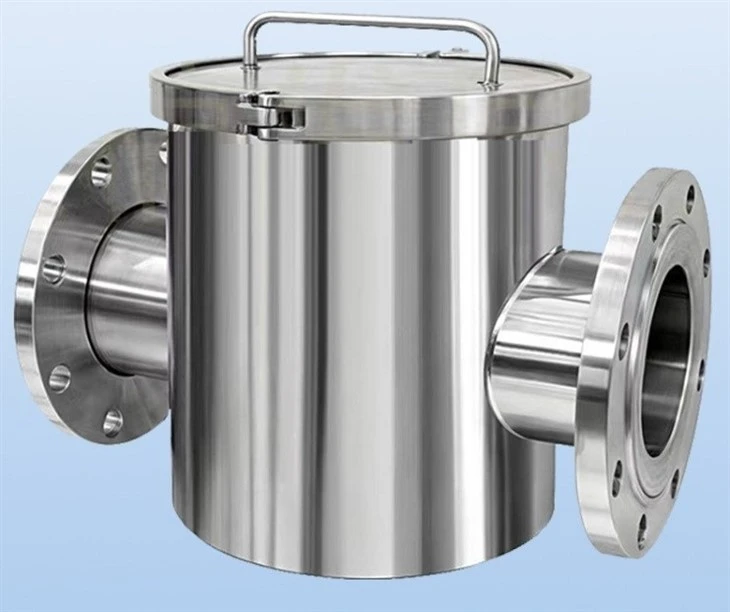

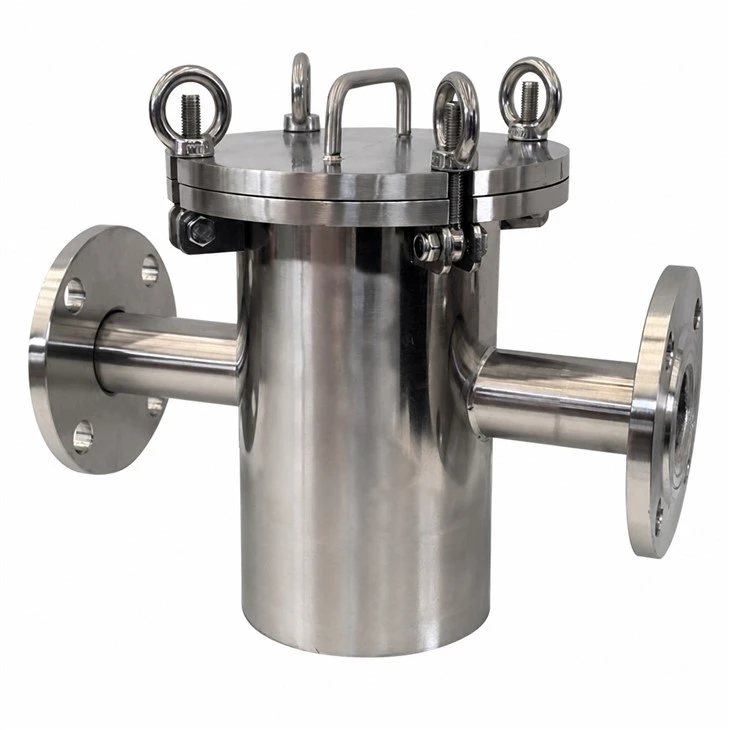

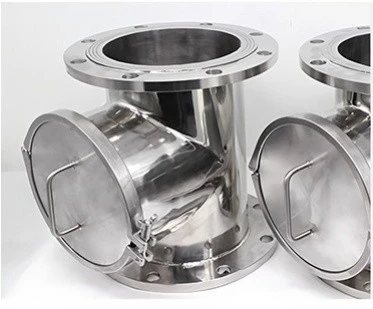

Industrial Pipeline Magnetic Trap Neodymium Permanent Separator is a practical contamination control device we manufacture in our factory for fluid processing lines. We use high-grade neodymium magnets sealed inside a stainless steel housing to attract and hold ferrous particles from liquids as they pass through the pipeline, helping protect pumps, valves, and final product quality.
After years of supplying these traps to different industries, we have optimized the magnetic circuit and housing design for stable performance under continuous flow. Many customers procure Industrial Pipeline Magnetic Trap Neodymium Permanent Separator when they need a maintenance-friendly solution for removing metal debris. When you order this product, we can match the flange size, magnetic strength, and material grade to your specific pipeline requirements.
Products Summary
Reliable permanent magnetic trap for removing ferrous particles from pipelines.
-
High-strength neodymium magnets capture fine metal contaminants
-
Stainless steel construction for corrosion resistance
-
Easy to install and clean without stopping the system
-
Suitable for food, chemical, and industrial fluid lines
Continuous Flow Protection

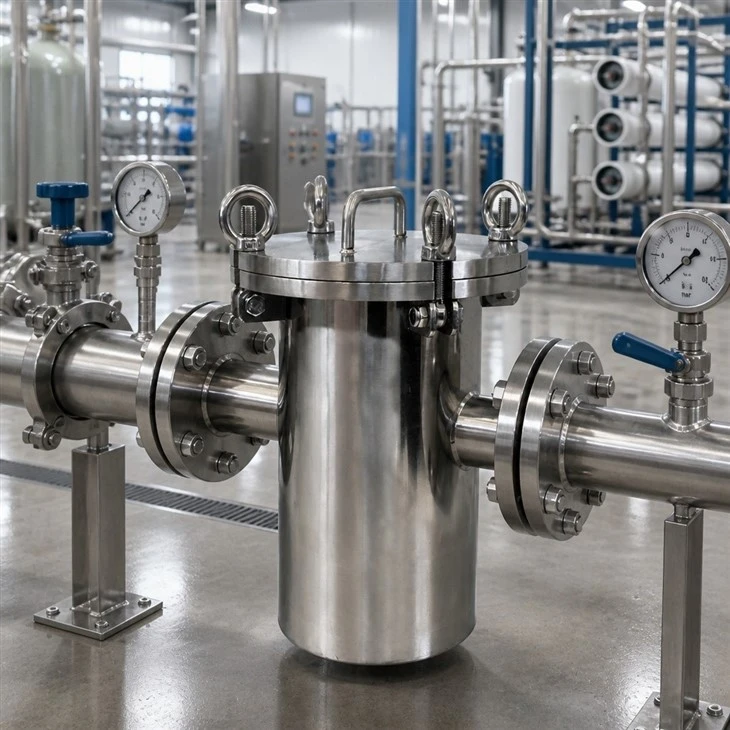

In real production environments, these magnetic traps work quietly in the background without needing external power. The strong permanent magnets keep capturing particles even during high-flow conditions, and the easy-open design allows operators to remove collected metal during planned cleaning. Our workshop testing focuses on sealing reliability and magnetic field consistency so the unit performs steadily over long production runs.
Products Specifications
| Parameter | Details |
|---|---|
| Product Name | Industrial Pipeline Magnetic Trap Neodymium Permanent Separator |
| Magnet Material | High-Grade Neodymium (NdFeB) |
| Housing Material | Stainless Steel (SS304 / SS316 optional) |
| Connection Type | Flange / Threaded / Custom |
| Pipeline Size | DN25 – DN300 (Customizable) |
| Magnetic Strength | High Gauss (Customized) |
| Working Temperature | Up to 80–150°C depending on magnet grade |
| Applications | Food, Chemical, Pharmaceutical, Oil, Water |
Packaging & Shipping
Each unit is thoroughly cleaned, protected with anti-rust packaging, and fixed inside a strong wooden crate or heavy carton to prevent damage during transport. For export orders we use standard export packing with clear markings and provide full tracking information.
FAQ
1. How often does the magnetic trap need to be cleaned?
Cleaning frequency depends on the amount of ferrous contamination in the fluid. Many users check and clean it during regular maintenance intervals.
2. Can it be installed in both horizontal and vertical pipelines?
Yes, it can be installed in either orientation. We recommend following the flow direction marked on the housing.
3. Do you offer different magnetic strengths or food-grade versions?
Yes, we can adjust the magnet grade and provide polished stainless steel versions suitable for food and pharmaceutical applications.
