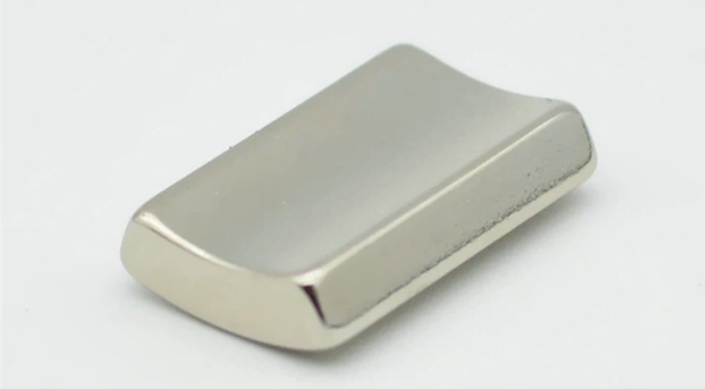

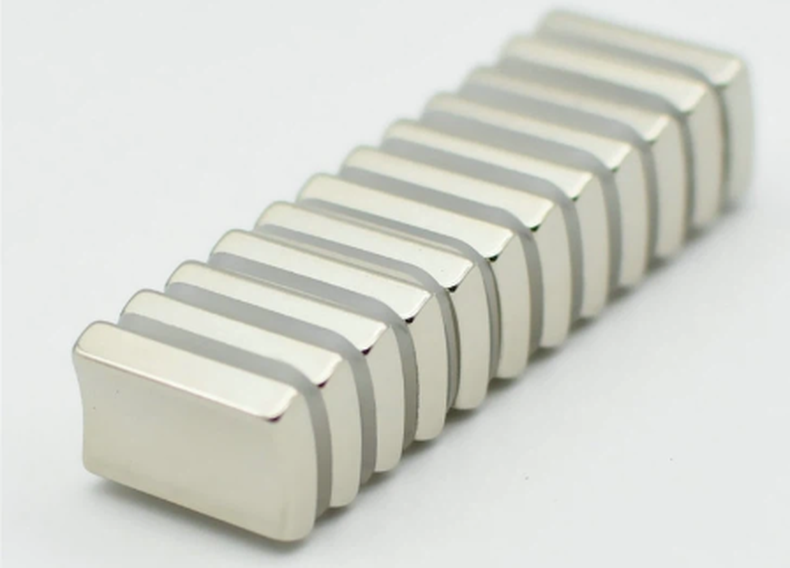

Widely Used Industry Tile Neodymiun Magnet

This tile‑shaped neodymium magnet is engineered for industrial assemblies that require planar magnetic forces, modular mounting, or distributed magnetic arrays. "Tile" refers to magnets with flat, rectangular profiles that fit into planar assemblies, fixtures, jigs, or tooling surfaces where a consistent magnetic surface is needed rather than a point or line contact.

These magnets are widely applied in automated systems, tooling fixtures and sensor platforms, especially where multiple magnets are arranged in grid or pattern layouts to achieve uniform holding or field coverage.

• Material: Sintered NdFeB (Neodymium Iron Boron), known for high magnetic energy density.
• Shape: Tile / rectangular plate - flat surface for direct mounting or bonding.
• Magnetization: Customizable - axial, through‑thickness, or bespoke field patterns based on assembly requirements.
• Coating: Standard Ni–Cu–Ni; optional epoxy, zinc or other protective finishes for specific conditions.
• Tolerance: Dimension and thickness per drawing; tighter tolerance options available upon request.
• Operating Temperature: Standard up to ~80 °C; high‑temp variants available for elevated thermal loads.

The tile form supports even field distribution over flat areas, enabling predictable force where magnets are placed adjacent to each other in arrays or combined with ferrous backplates.

Contact now





Planar neodymium magnets are suitable when flat surface contact or distributed magnetic force is required:

• Magnetic Fixtures: Tables and plates holding workpieces in machining or inspection setups.
• Modular Assemblies: Grid arrangements where consistent field patterns are needed.
• Linear Motion Guides: Magnets embedded in rails or carriers for stable field interaction.
• Sensor & Encoder Mounts: Flat magnets used in position sensing and feedback mechanisms.
• Separator Screens: Paired with ferrous surfaces to hold or divert metal fragments.

Their flat faces and customizable magnetization make them easy to integrate into assemblies with adhesive bonding, mechanical clamps, or recess mountings.

• Dimension Control: Provide full CAD or drawing files early - this ensures the tile magnet matches adjoining components with minimal gaps.
• Field Orientation: Flat magnetization types require careful planning with ferrous interfaces to ensure full contact and effective holding force.
• Tolerance Matching: For automated assembly lines, specify dimensional and positional tolerances to avoid misalignment during pick‑and‑place or press‑fit processes.

Working with engineering teams early ensures magnet geometry and field orientation align with mechanical and electrical system requirements.

We support bulk orders and OEM supply workflows for industrial programs. Custom options include:

• Tailored tile dimensions and thickness
• Custom magnetization patterns or multi‑pole layouts
• Coating selections for high humidity or chemical exposure
• Batch labeling and project packaging for assembly lines

To quote accurately, share your dimensional and performance specifications, expected operating environment, and annual volume projections.

Each batch can be supplied with:

• Dimensional inspection reports
• Magnetic flux and coercivity data
• Coating adhesion verification
• Traceability and lot identification

These deliverables assist with incoming inspection and process control in production environments.
