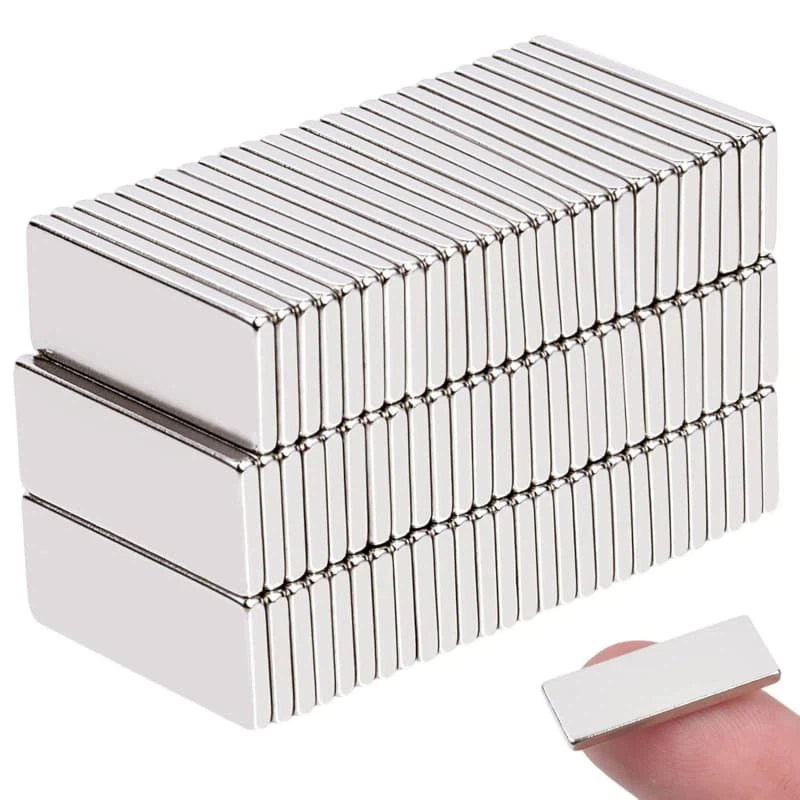

Robot Coreless DC Motor Magnet

The Robot Coreless DC Motor Magnet is a precision-manufactured NdFeB magnetic component designed primarily for coreless DC motor applications in robotics, automation devices, and other compact electromechanical systems. Built with high-energy rare-earth material, this magnet delivers consistent magnetic force in a thin profile suitable for high-speed, high-efficiency motor assemblies. Engineers and OEMs use this magnet type when space constraints, torque requirements, and dynamic response are all critical design considerations.

• Material: Sintered Nd–Fe–B (Neodymium Iron Boron)
• Grade: Commonly N35–N52 (selectable based on force and temperature needs)
• Shape: Block / arc / custom segment (depending on motor design)
• Magnetization: Axial or radial based on rotor geometry
• Finish: Standard Ni-Cu-Ni coating; alternative coatings (epoxy, zinc) available for environmental resistance
• Dimensional Control: Tight tolerances (±0.05 mm or better) to ensure consistent flux distribution
• Testing: Each batch tested for magnetic flux (Br), coercivity (Hcj), and dimensional accuracy before shipment

For complex rotor geometries or unusual magnetization directions, we provide custom magnet solutions to match design requirements.



Contact now

The coreless DC motor environment places unique demands on magnets:

• Thin Profile Efficiency: The lack of iron core around the winding means magnets must provide high flux in limited radial space. This design maximizes torque output while maintaining a small motor envelope.
• Stable Magnetic Output: NdFeB material ensures minimal changes in magnetic performance under normal operating temperatures, which helps maintain motor consistency over time.
• Precision Integration: Tight dimensional tolerances and controlled magnetization patterns support repeatable assembly processes and reduce variation in motor batches.

This magnet type is used where compact size and dynamic performance are required:

• Robotics joints, actuators, and end-effectors
• Small coreless DC motors in UAVs and drones
• Precision medical devices and diagnostic equipment
• Automated tools and gimbal systems
• Portable consumer electronics with high torque requirements

We offer samples for performance evaluation prior to committing to bulk orders. For OEM product lines, we can supply matched sets with traceable batch documentation and quality reports. Custom tooling and magnetization patterns are available - simply submit your CAD drawings or specifications for review.

Magnets are packaged with separators to prevent attraction during transit and labeled for batch control. Lead times for standard configurations are typically 3–5 weeks; custom projects depend on specification complexity and order volume.
