Rectangle N52 Neo Magnet 50x25x10 Without Dy And Tb

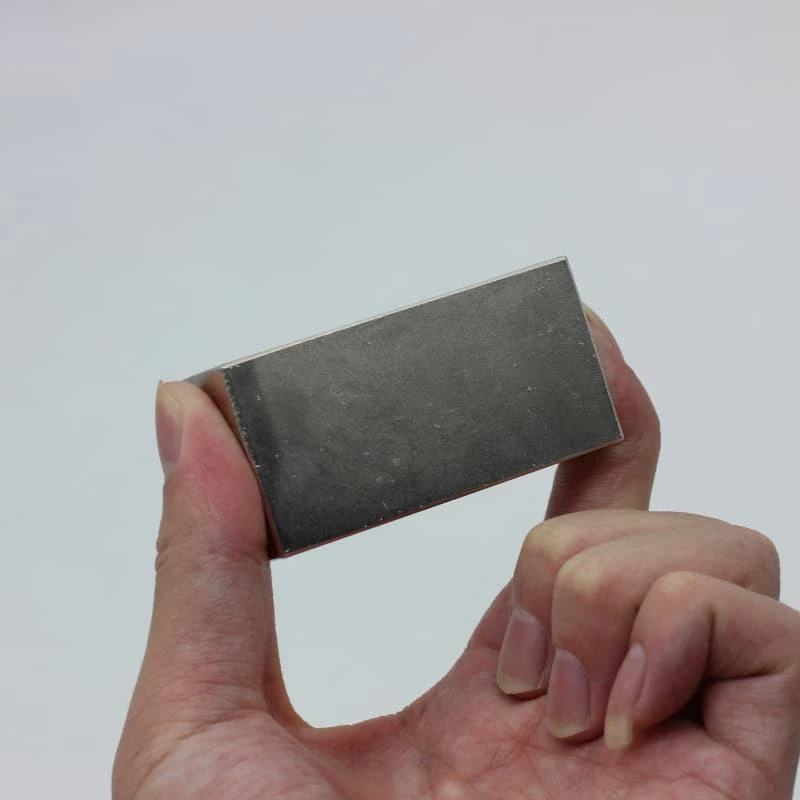

N52 Neodymium Block Magnet - 50 × 25 × 10 mm

This is a production-ready N52 neodymium magnet block sized 50 × 25 × 10 mm for applications that require high magnetic flux in a compact form. The part is manufactured by sintering NdFeB and finished with a standard Ni–Cu–Ni plate for corrosion resistance. We supply samples and production runs for engineering validation and volume orders.

• Material: NdFeB (Neodymium–Iron–Boron)
• Grade: N52
• Size: 50 mm × 25 mm × 10 mm
• Tolerance: ±0.1 mm
• Coating: Ni–Cu–Ni (nickel–copper–nickel)
• Magnetization direction: through the 10 mm thickness
• Max recommended operating temperature: ~80 °C
• Typical tests: dimensional inspection, magnetic flux verification, visual coating check
• Certifications: ISO9001 management, RoHS compliance, SGS test reports available on request







• High energy density in a small block - useful where space limits and strong pull are required.
• Repeatable dimensions - suitable for fixtures and assemblies where interchangeability matters.
• Corrosion protection for indoor and controlled-environment use; refer to coating spec for outdoor exposure cases.
• Predictable thermal behavior up to the stated operating temperature; for higher-temp applications consider alternative grades.

• Motor and actuator subassemblies where concentrated field strength is needed.
• Magnetic couplings, latches and holding fixtures in production equipment.
• Sensor and transducer assemblies that require stable field characteristics.
• OEM components for appliance, automotive interior fittings (non-structural), and industrial devices.

1. Samples & testing - request 1–5 samples to validate fit, magnetization, and coating in your process.
2. Specification confirmation - confirm grade, coating and tolerance; we can adjust magnetization direction on request.
3. Pilot run - short production batch for assembly-line verification.
4. Volume supply - standard lead times and documentation for recurring orders, plus QA reports on each lot.

Each production batch is inspected for dimensional accuracy and magnetic performance. We can provide batch traceability, magnetic flux measurements, and certificate copies (RoHS/ISO/SGS) with orders to meet procurement or regulatory needs.

For engineering samples, technical drawings, or a formal quotation, contact our sales team with quantity, required tolerance and any special coating or shipping requirements. We support OEM/ODM magnet solutions and can quote terms for bulk procurement.
