Product Overview
This permanent magnet series is designed for brushless DC (BLDC) motors and similar electromechanical drives, where consistent magnetic performance and compact design are critical. These magnets are typically integrated into the rotor or stator to provide the required flux density and torque characteristics for BLDC motor operation.
High‑energy NdFeB material is chosen for its ability to deliver substantial magnetic force in a relatively small volume, which helps reduce motor size and improve efficiency without compromising output.
Material & Magnetic Properties
- Material: Sintered Nd–Fe–B (Neodymium Iron Boron)
- Grades: N35–N52 - selected based on operating temperature, torque, and efficiency targets

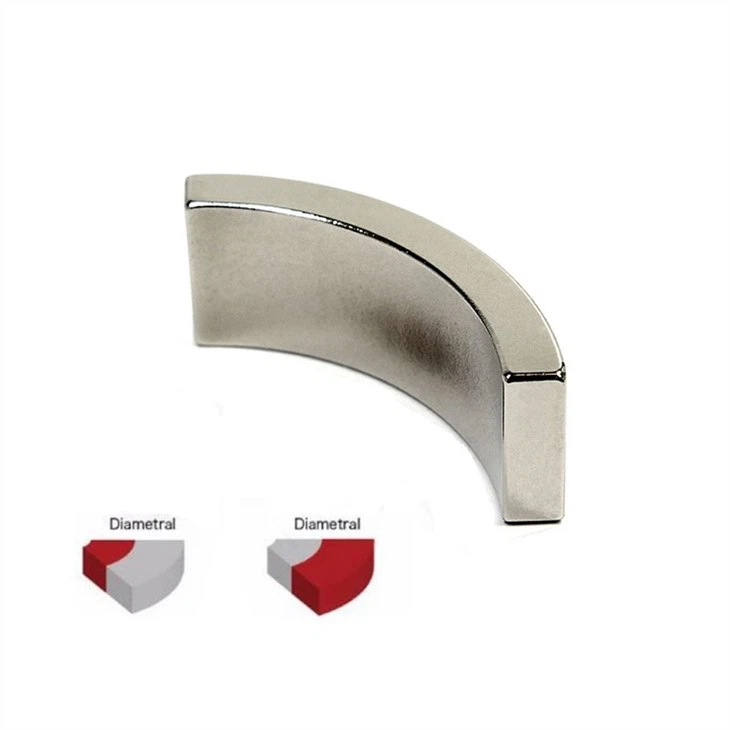

- Shape/Form: Arc, block, or custom segments fitted to motor design
- Magnetization: Radial (standard for BLDC rotors) or custom magnetization schemes
- Coating Options: Ni–Cu–Ni standard; epoxy or zinc coatings for enhanced corrosion resistance
- Temperature Capability: Typical up to ~80 °C; higher temp grades available for demanding environments
NdFeB magnets require careful handling due to their brittle nature, but once incorporated into motor assemblies with proper mechanical support, they provide stable magnetic fields over repeated thermal and load cycles.
Integration in BLDC Motors
In brushless DC motors, these permanent magnets serve as the primary source of magnetic flux in the rotor. Combined with the stator windings, they determine the motor's torque, speed response, and efficiency.
Key design considerations for motor engineers include:
- Flux Density Target: Higher grade magnets (e.g., N48, N52) help achieve higher torque density.
- Temperature Margin: Selection of material grade and coating must account for operating temperature peaks.
- Magnet Geometry: Custom arc or segment shapes that match rotor curvature ensure uniform air‑gap flux and minimize torque ripple.
Motor performance and life cycle depend on the quality of the magnetic materials and how consistently they perform from batch to batch.
Typical Applications
Permanent NdFeB magnets for BLDC motors are used in:
Electric vehicle actuators and auxiliary drives
Industrial automation equipment
Robotics and precision motion systems
HVAC blower motors and fans
Consumer electronics with brushless drives
In these applications, strong magnetic performance and stable behavior across operational cycles are essential for reliability.
Procurement & Customization
We support bulk orders and provide customization for motor production requirements. Custom options include:
Magnet grade selection (for optimized torque/temperature performance)

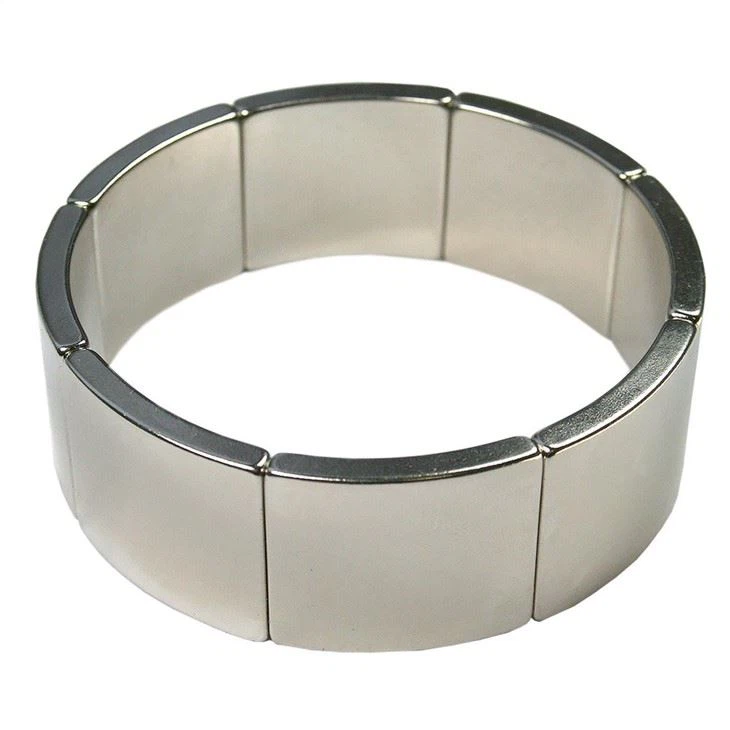

Custom shapes and segment pack design
Tailored coatings to meet environmental exposure needs
Dimensional tolerances compatible with automated assembly
For OEM customers, provide technical drawings or motor design specifications so we can match magnet segment geometry, magnetization direction, and coating to your application.
Quality & Supply Support
Each magnet batch can be accompanied by test documentation covering:
Magnetic flux measurements
Dimensional inspection
Coating adherence and finish verification
Packaging is arranged to prevent chipping or unintended attraction during transport and storage.
FAQ
Q1: Can you adjust magnet geometry for a specific rotor design?
Yes - we produce custom magnet shapes and magnetization patterns based on motor drawings.
Q2: Do these magnets withstand high operating temperatures?
Standard grades perform well up to ~80 °C; higher temp grades and coatings are available for elevated environments.
Q3: Are samples available before placing production orders?
Yes - samples can be provided for fit and performance verification prior to bulk orders.
